VANTAGE 2200

Open Chanel Ultrasonic Flowmeter

  • Flow Measurement
  • Level Transmission
  • Data Logging
  • IEEE 754 Precision Accuracy
  • 5 Minute Programming

The Vantage 2200 is a state-of-the-art microprocessor-based ultrasonic transmitter utilized for measurement of both liquid level and flow in open channels. The 2200 is equipped, as standard, with an internal data logger. More than 70 standard flow equations for flumes, weirs and open flow nozzles are stored in non-volatile memory. Dual sensors can be input to a single set of electronics for dual weir/flume or bar screen level applications. The Vantage 2200 is designed to be extremely user-friendly with an easy to read 20 character alphanumeric, self-prompting display and a menu-driven programming guide.

Vantage 2200 Brochure

PERFORMANCE

FLOW

  • APPLICATIONS
  • Plant Influent
  • Plant Effluent
  • Dual Channel Measurement
  •

The Vantage 2200 is pre-programmed at the factory for specific customer applications. If on-site calibration is required, more than 70 standard flow equations for flumes, weirs and open flow nozzles are stored in non-volatile memory. For non-standard applications, a site specific H/Q table may be entered through the 16 button keypad.

LEVEL

  • APPLICATIONS
  • Level Measurement
  • Differential Level Measurement
  • Dual Channel Measurement
  • Pump Alternation

Utilized for level measurement, The Vantage 2200 will accurately measure fluid level in ranges to 50 feet. With 5 programmable relay outputs (optional)for level alarms or pump alternation, the 2200 becomes an extremely versatile instrument for level measurement and control.

CHART RECORDER

INTEGRATED

CHART RECORDER

Eastech design engineers have successfully combined three separate products; a direct-drive chart recorder, transit-time flowmeter and 8 channel datalogger into a single unit. Engineering and plant personnel may now specify an extremely accurate and cost- efficient system to monitor and measure flow in one compact integrated assembly.

Chart Recorder
  • Fully Integrated Package
  • Powered by Flowmeter
  • User Selectable Output Ranges and Recording Times
  • High/Low Alarms and Display of Min/Max Readings
  • Locking Control Keypad & Door
  • User Calibration
  • Wall Mounting Bracket
  • Floating Point Display with Display Format Selection
  • Superbright Digital Display

Chart Recorder.pdf

FLUME

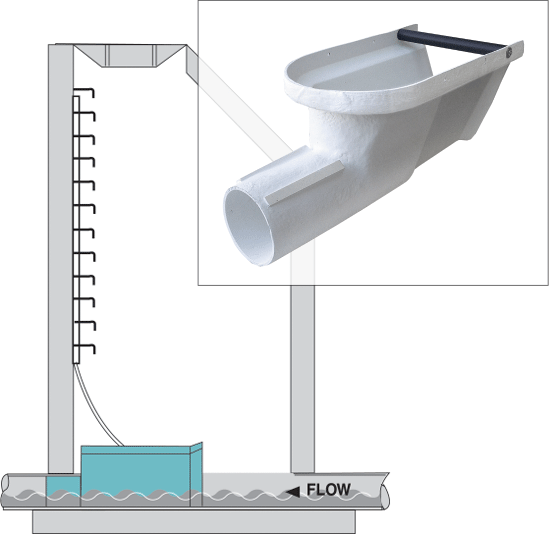

Flume Illustration

MANHOLE FLUME

Easy Installation
Excellent Rangeability
Adapts to Standard Wastewater
Conveyance Pipe
Sized to Fit 4" to 12" Pipe

The Manhole Flume is a unique variation of the Parshall concept designed for easy installation in standard manholes. Its fiberglass reinforced polyester resin construction, engineered for long life and corrosion resistance, incorporates a low head trapezoidal design in conjunction with a hooded outlet collector and pipe spud.

Manhole Flume.pdf
